MONOMATERIAL SHOE DESIGNER

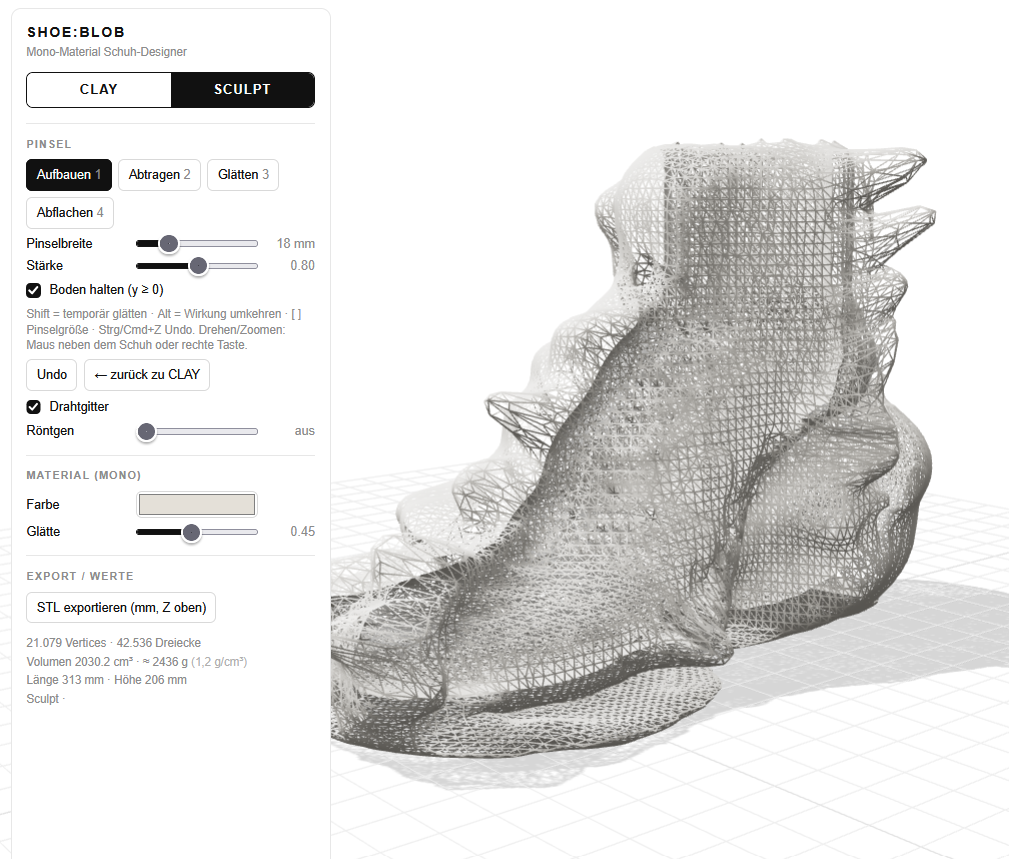

Web-based prototype for generating a parametric half-shoe shell around a digital foot model. The shoe is built from a signed distance field that combines a measured foot shape, an outer wall defined by polar curves, a Voronoi cell pattern for the sole and side walls, a tread pattern, a lace band with eyelets, side lamellae and an ankle ring. The Voronoi structure is driven by a paintable heatmap that controls cell size, and the cells can be warped, stretched and opened toward the outside wall. The foot and the shoe are meshed with surface nets in web workers at several resolutions and shown in a Three.js viewport with orbit controls, wireframe and section views. Shapes are edited through Bézier curve editors for the top outline and the side profile, and presets cover sneaker, trainer, platform, runner, wedge and moccasin types. The result can be exported as STL or OBJ for 3D printing, and the full parameter set, curves and heatmap can be saved as JSON or in browser storage. The prototype is meant for design exploration, fit checks and as a starting point for further shoe tools.

  • Version: v1.0
  • Parametric shoe shell generated from a signed distance field
  • Foot model measured from a reference scan, adjustable size, width and heel pitch
  • Voronoi sole and side walls with paintable cell-size heatmap
  • Bézier editors for top outline and side profile
  • Tread pattern, lace band with eyelets, side lamellae and ankle ring
  • HD mesh rendering in web workers with STL and OBJ export
  • Save and load as JSON or in browser localStorage
  • Tech: Three.js r160, WebGL, Web Workers, Canvas 2D, Web Storage
  • Requires: WebGL-capable browser, internet connection for Three.js from a CDN, optional normal_map.jpg for the material

LIVE DEMO : https://code.turboflip.de/run/bdb97fdc7645a595/

CODE : https://code.turboflip.de/p/bdb97fdc7645a595

Material properties visualization - alpha state!

seethrough feature - alpha state!
